MPLS L3VPN典型配置举例

组网需求

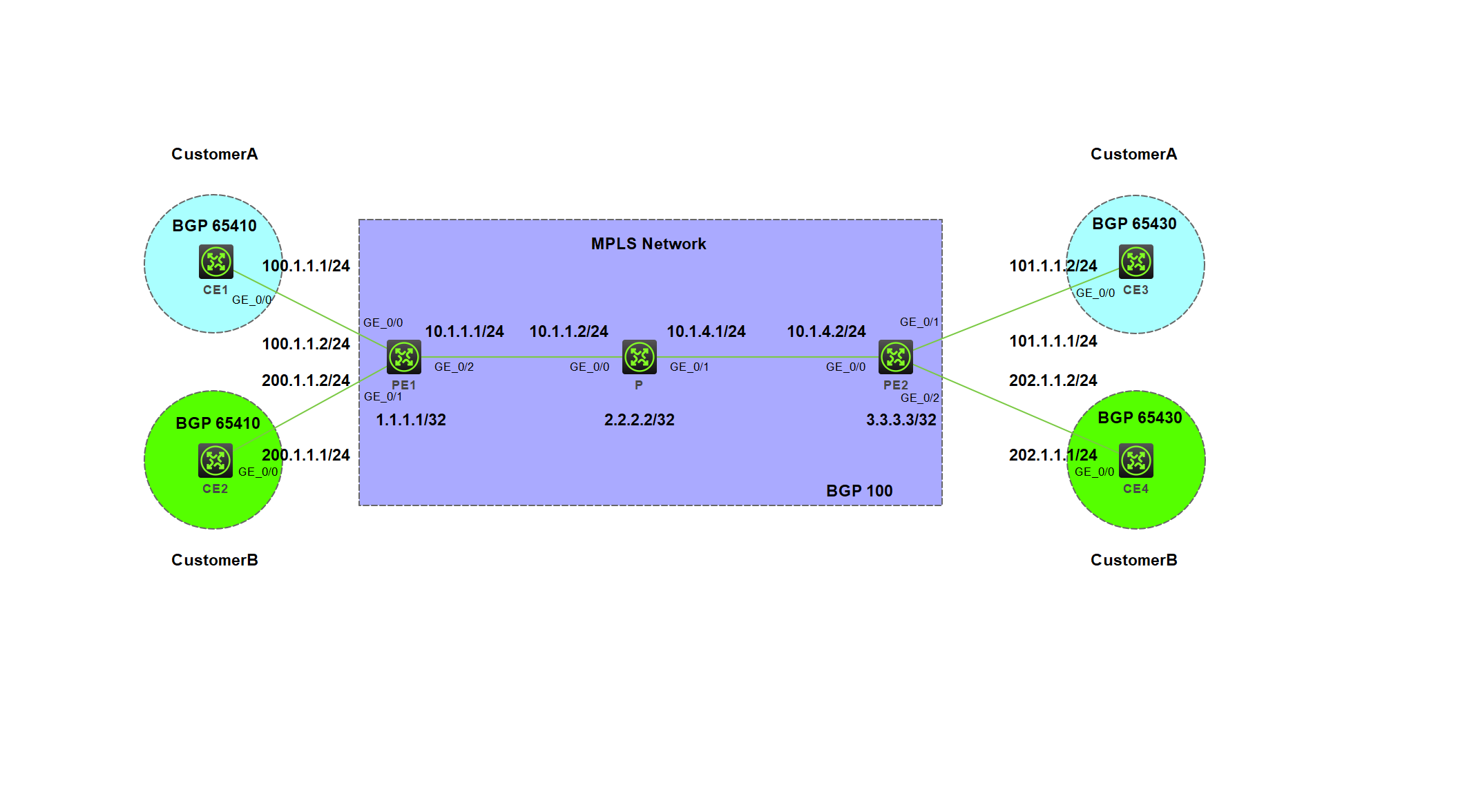

MPLS L3VPN 基本组网图


如图所示，Customer A和Customer B分别有位于两地的分支机构，现要求通过MPLS L3VPN技
术，实现用户分支机构间路由信息的正常交互，且用户数据可以通过VPN方式在各站点间安全传输，
不会发送至私网IP地址相同的其它用户站点中。

配置思路

  • 为了使报文能够通过 MPLS 网络传输，需要在 MPLS 骨干网络中配置 IGP 路由协议，并利用
    LDP 分发公网标签，作为 VPN 报文的外层标签。
  • 为区分不同用户的路由信息，需要在 PE 上分别创建两个 VPN 实例，并为 VPN 实例配置 RD
    和 RT，在各实例内通过 BGP 分别引入不同用户的私网路由。
  • 在 PE 设备之间配置 MP-BGP 协议并建立对等体，用于传输 VPN 的私网路由信息并分发内层
    标签，即私网标签。

配置步骤

PE1

<PE1>display current-configuration
#
 version 7.1.064, Release 0821P11
#
 sysname PE1
#
ip vpn-instance customerA
 route-distinguisher 100:1
 vpn-target 111:1 222:1 import-extcommunity
 vpn-target 222:1 export-extcommunity
#
ip vpn-instance customerB
 route-distinguisher 200:1
 vpn-target 333:1 import-extcommunity
 vpn-target 444:1 export-extcommunity
#
ospf 1 router-id 1.1.1.1
 area 0.0.0.0
  network 1.1.1.1 0.0.0.0
  network 10.1.1.1 0.0.0.0
#
 mpls lsr-id 1.1.1.1
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
mpls ldp
#
interface Serial1/0
#
interface Serial2/0
#
interface Serial3/0
#
interface Serial4/0
#
interface NULL0
#
interface LoopBack0
 ip address 1.1.1.1 255.255.255.255
#
interface GigabitEthernet0/0
 port link-mode route
 combo enable copper
 ip binding vpn-instance customerA
 ip address 100.1.1.2 255.255.255.0
#
interface GigabitEthernet0/1
 port link-mode route
 combo enable copper
 ip binding vpn-instance customerB
 ip address 200.1.1.2 255.255.255.0
#
interface GigabitEthernet0/2
 port link-mode route
 combo enable copper
 ip address 10.1.1.1 255.255.255.0
 mpls enable
 mpls ldp enable
#
interface GigabitEthernet5/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/1
 port link-mode route
 combo enable copper
#
bgp 100
 router-id 1.1.1.1
 peer 3.3.3.3 as-number 100
 peer 3.3.3.3 connect-interface LoopBack0
 #
 address-family vpnv4
  peer 3.3.3.3 enable
 #
 ip vpn-instance customerA
  peer 100.1.1.1 as-number 65410
  #
  address-family ipv4 unicast
   import-route direct
   peer 100.1.1.1 enable
 #
 ip vpn-instance customerB
  peer 200.1.1.1 as-number 65410
  #
  address-family ipv4 unicast
   import-route direct
   peer 200.1.1.1 enable
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return

P

<P>display current-configuration
#
 version 7.1.064, Release 0821P11
#
 sysname P
#
ospf 1 router-id 2.2.2.2
 area 0.0.0.0
  network 2.2.2.2 0.0.0.0
  network 10.1.1.2 0.0.0.0
  network 10.1.4.1 0.0.0.0
#
 mpls lsr-id 2.2.2.2
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
mpls ldp
#
interface Serial1/0
#
interface Serial2/0
#
interface Serial3/0
#
interface Serial4/0
#
interface NULL0
#
interface LoopBack0
 ip address 2.2.2.2 255.255.255.255
#
interface GigabitEthernet0/0
 port link-mode route
 combo enable copper
 ip address 10.1.1.2 255.255.255.0
 mpls enable
 mpls ldp enable
#
interface GigabitEthernet0/1
 port link-mode route
 combo enable copper
 ip address 10.1.4.1 255.255.255.0
 mpls enable
 mpls ldp enable
#
interface GigabitEthernet0/2
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/1
 port link-mode route
 combo enable copper
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return

PE2

<PE2>display current-configuration
#
 version 7.1.064, Release 0821P11
#
 sysname PE2
#
ip vpn-instance customerA
 route-distinguisher 100:1
 vpn-target 222:1 import-extcommunity
 vpn-target 111:1 export-extcommunity
#
ip vpn-instance customerB
 route-distinguisher 200:1
 vpn-target 444:1 import-extcommunity
 vpn-target 333:1 export-extcommunity
#
ospf 1 router-id 3.3.3.3
 area 0.0.0.0
  network 3.3.3.3 0.0.0.0
  network 10.1.4.2 0.0.0.0
#
 mpls lsr-id 3.3.3.3
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
mpls ldp
#
interface Serial1/0
#
interface Serial2/0
#
interface Serial3/0
#
interface Serial4/0
#
interface NULL0
#
interface LoopBack0
 ip address 3.3.3.3 255.255.255.255
#
interface GigabitEthernet0/0
 port link-mode route
 combo enable copper
 ip address 10.1.4.2 255.255.255.0
 mpls enable
 mpls ldp enable
#
interface GigabitEthernet0/1
 port link-mode route
 combo enable copper
 ip binding vpn-instance customerA
 ip address 101.1.1.1 255.255.255.0
#
interface GigabitEthernet0/2
 port link-mode route
 combo enable copper
 ip binding vpn-instance customerB
 ip address 202.1.1.2 255.255.255.0
#
interface GigabitEthernet5/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/1
 port link-mode route
 combo enable copper
#
bgp 100
 router-id 3.3.3.3
 peer 1.1.1.1 as-number 100
 peer 1.1.1.1 connect-interface LoopBack0
 #
 address-family vpnv4
  peer 1.1.1.1 enable
 #
 ip vpn-instance customerA
  peer 101.1.1.2 as-number 65430
  #
  address-family ipv4 unicast
   import-route direct
   peer 101.1.1.2 enable
 #
 ip vpn-instance customerB
  peer 202.1.1.1 as-number 65430
  #
  address-family ipv4 unicast
   import-route direct
   peer 202.1.1.1 enable
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return

CE1

<CE1>display current-configuration
#
 version 7.1.064, Release 0821P11
#
 sysname CE1
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
interface Serial1/0
#
interface Serial2/0
#
interface Serial3/0
#
interface Serial4/0
#
interface NULL0
#
interface LoopBack0
 ip address 172.16.0.1 255.255.255.0
#
interface GigabitEthernet0/0
 port link-mode route
 combo enable copper
 ip address 100.1.1.1 255.255.255.0
#
interface GigabitEthernet0/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet0/2
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/1
 port link-mode route
 combo enable copper
#
bgp 65410
 peer 100.1.1.2 as-number 100
 #
 address-family ipv4 unicast
  import-route direct
  peer 100.1.1.2 enable
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return

CE2

<CE2>display current-configuration
#
 version 7.1.064, Release 0821P11
#
 sysname CE2
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
interface Serial1/0
#
interface Serial2/0
#
interface Serial3/0
#
interface Serial4/0
#
interface NULL0
#
interface LoopBack0
 ip address 172.16.0.1 255.255.255.0
#
interface GigabitEthernet0/0
 port link-mode route
 combo enable copper
 ip address 200.1.1.1 255.255.255.0
#
interface GigabitEthernet0/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet0/2
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/1
 port link-mode route
 combo enable copper
#
bgp 65410
 peer 200.1.1.2 as-number 100
 #
 address-family ipv4 unicast
  import-route direct
  peer 200.1.1.2 enable
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return

CE3

<CE3>dis current-configuration
#
 version 7.1.064, Release 0821P11
#
 sysname CE3
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
interface Serial1/0
#
interface Serial2/0
#
interface Serial3/0
#
interface Serial4/0
#
interface NULL0
#
interface LoopBack0
 ip address 172.16.1.1 255.255.255.0
#
interface GigabitEthernet0/0
 port link-mode route
 combo enable copper
 ip address 101.1.1.2 255.255.255.0
#
interface GigabitEthernet0/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet0/2
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/1
 port link-mode route
 combo enable copper
#
bgp 65430
 peer 101.1.1.1 as-number 100
 #
 address-family ipv4 unicast
  import-route direct
  peer 101.1.1.1 enable
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return

CE4

<CE4>display current-configuration
#
 version 7.1.064, Release 0821P11
#
 sysname CE4
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
interface Serial1/0
#
interface Serial2/0
#
interface Serial3/0
#
interface Serial4/0
#
interface NULL0
#
interface LoopBack0
 ip address 172.16.1.1 255.255.255.0
#
interface GigabitEthernet0/0
 port link-mode route
 combo enable copper
 ip address 202.1.1.1 255.255.255.0
#
interface GigabitEthernet0/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet0/2
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet5/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet6/1
 port link-mode route
 combo enable copper
#
bgp 65430
 peer 202.1.1.2 as-number 100
 #
 address-family ipv4 unicast
  import-route direct
  peer 202.1.1.2 enable
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return
